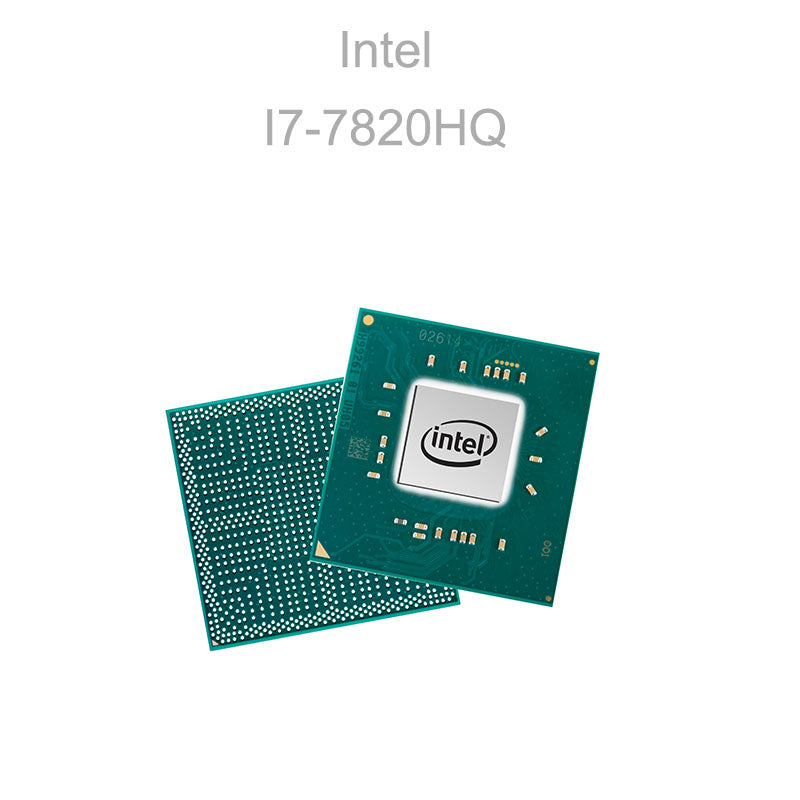

i7-7820HQ

Product Overview

The Intel Core i7-7820HQ is a high-performance mobile processor from Intel's 7th Generation Intel Core i7 processor family, based on the Kaby Lake architecture and manufactured using a 14 nm process technology.

The processor features 4 cores and 8 threads, with a base frequency of 2.90 GHz and a maximum Turbo frequency of 3.90 GHz. It integrates 8 MB Intel Smart Cache, Intel HD Graphics 630, and a dual-channel memory controller supporting DDR4-2400, LPDDR3-2133, and DDR3L-1600 memory.

With a 45 W TDP, Intel Hyper-Threading, Intel Turbo Boost 2.0, AVX2 instructions, PCI Express 3.0, and integrated graphics, the i7-7820HQ was designed for high-performance laptops, mobile workstations, professional computing systems, and other performance-oriented mobile platforms.

Key Features

• 7th Generation Intel Core i7 processor

• Kaby Lake architecture

• 14 nm process technology

• 4 processor cores

• 8 processor threads

• Base frequency: 2.90 GHz

• Maximum Turbo frequency: 3.90 GHz

• 8 MB Intel Smart Cache

• Intel Hyper-Threading Technology

• Intel Turbo Boost Technology 2.0

• Intel Speed Shift Technology

• 45 W TDP

• Configurable TDP-down to 35 W

• Integrated Intel HD Graphics 630

• Graphics base frequency: 350 MHz

• Graphics maximum dynamic frequency: 1.10 GHz

• Supports up to 3 displays

• Dual-channel memory controller

• Supports DDR4-2400, LPDDR3-2133 and DDR3L-1600

• Maximum memory capacity up to 64 GB

• PCI Express 3.0

• Up to 16 PCI Express lanes

• Intel 64 architecture

• Intel SSE4.1, SSE4.2 and AVX2 instruction extensions

• Intel VT-x and VT-d virtualization technologies

• Intel AES New Instructions

• Intel Secure Key

• Intel SGX support

• FCBGA1440 package

Technical Specifications

Intel currently lists the i7-7820HQ as discontinued, with end of servicing updates dated March 31, 2024.

Graphics & Display

The Intel Core i7-7820HQ integrates Intel HD Graphics 630, providing integrated graphics capabilities without requiring a separate GPU for supported systems.

Key graphics specifications include:

• Intel HD Graphics 630

• Graphics base frequency: 350 MHz

• Maximum dynamic frequency: 1.10 GHz

• DirectX 12 support

• OpenGL 4.5 support

• Intel Quick Sync Video

• Intel Clear Video HD Technology

• Intel InTru 3D Technology

• Up to 3 displays

• 4K display support

• Maximum DisplayPort resolution: 4096 × 2304 @ 60 Hz

• Maximum HDMI resolution: 4096 × 2304 @ 30 Hz

Memory & Expansion

The i7-7820HQ includes an integrated dual-channel memory controller supporting several mobile memory technologies.

Supported memory includes:

• DDR4-2400

• LPDDR3-2133

• DDR3L-1600

• Maximum memory capacity: 64 GB

• 2 memory channels

• Maximum memory bandwidth: 37.5 GB/s

• ECC memory: Not supported

The processor also provides PCI Express 3.0 connectivity with up to 16 PCI Express lanes, supporting configurations of up to 1×16, 2×8, or 1×8 + 2×4 depending on the system implementation.

Applications

The Intel Core i7-7820HQ is suitable for a range of performance-oriented mobile computing applications, including:

• Mobile Workstations

• Professional Laptops

• High-Performance Notebooks

• Engineering Workstations

• CAD and Design Systems

• Video Editing Systems

• 3D Modeling and Rendering

• Software Development Systems

• Business Computing

• Industrial Mobile Computers

• Portable Data Processing Systems

• Professional Graphics Applications

• Embedded Computing Platforms

Benefits

The Intel Core i7-7820HQ combines 4 cores and 8 threads with a maximum Turbo frequency of 3.90 GHz, providing strong multi-threaded and single-threaded performance for its generation.

Its 8 MB cache, Hyper-Threading, Turbo Boost 2.0, AVX2 support, integrated Intel HD Graphics 630, and dual-channel DDR4 memory controller make it suitable for demanding mobile computing systems.

The processor's PCI Express 3.0 interface with up to 16 lanes also provides flexible expansion capabilities for discrete graphics and other high-speed peripherals.

Packaging & Ordering Information

Intel's ordering information identifies the i7-7820HQ as FC-BGA14F / FCBGA1440, supplied in tray packaging, with ordering code CL8067702869911 and specification code SR32N.

Datasheet

For complete electrical characteristics, platform configuration, package information, thermal specifications, PCI Express details, memory specifications, and system design information, please refer to the official Intel documentation.

Datasheet: Official Intel 7th Generation Core H-Processor Datasheet

Frequently Asked Questions

What is Intel Core i7-7820HQ?

The Intel Core i7-7820HQ is a 7th Generation Intel Core i7 mobile processor based on the Kaby Lake architecture and manufactured using a 14 nm process.

How many cores and threads does i7-7820HQ have?

The i7-7820HQ has 4 CPU cores and 8 threads with Intel Hyper-Threading Technology.

What is the maximum frequency of i7-7820HQ?

The processor has a 2.90 GHz base frequency and can reach a maximum Turbo frequency of 3.90 GHz.

How much cache does i7-7820HQ have?

The processor provides 8 MB of Intel Smart Cache.

What is the TDP of i7-7820HQ?

The standard TDP is 45 W, with a configurable TDP-down value of 35 W.

What graphics does i7-7820HQ use?

The processor integrates Intel HD Graphics 630, with a 350 MHz base frequency and up to 1.10 GHz dynamic frequency.

What memory does i7-7820HQ support?

The processor supports DDR4-2400, LPDDR3-2133, and DDR3L-1600, with up to 64 GB of memory and two memory channels.

What package is used for i7-7820HQ?

The i7-7820HQ is supplied in an FCBGA1440 package measuring 42 mm × 28 mm.

Is i7-7820HQ still in production?

No. Intel lists the i7-7820HQ as discontinued and its servicing status as end of servicing updates.
