Product Overview

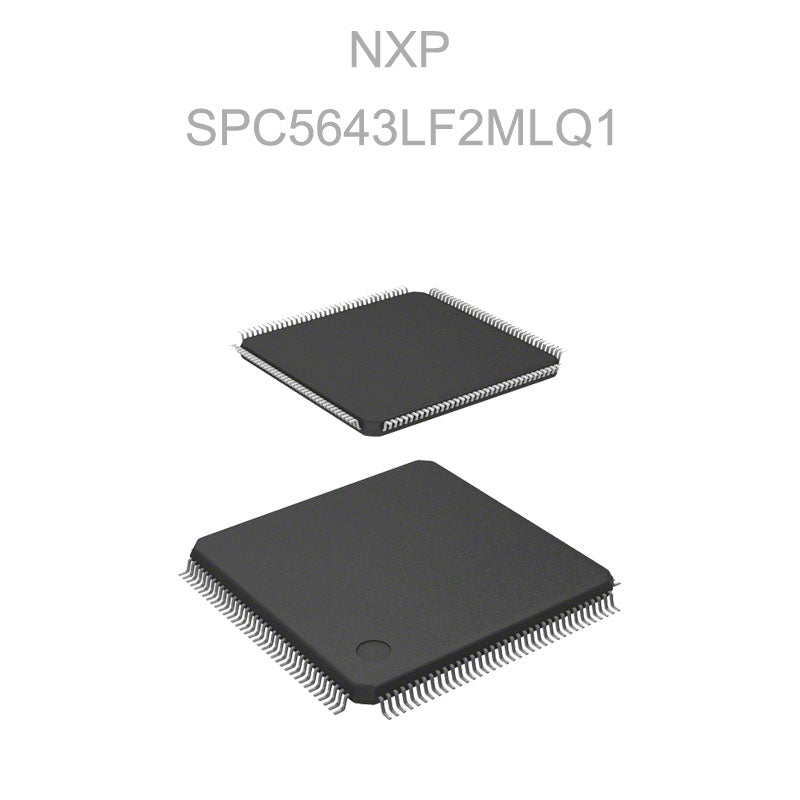

The SPC5643LF2MLQ1 is a high-performance 32-bit dual-core automotive microcontroller from NXP's MPC56xx Qorivva family. Built around the powerful e200z4 Power Architecture® core, this MCU delivers exceptional real-time processing performance for safety-critical automotive and industrial control applications.
Featuring up to 120MHz operating frequency, 1MB Flash memory, 128KB SRAM, integrated FlexRay, CAN, LIN, SPI, and UART communication interfaces, the SPC5643LF2MLQ1 is designed to meet the demanding requirements of automotive body electronics, chassis control, industrial automation, and advanced embedded systems.
Its automotive-grade reliability and advanced safety architecture make it an ideal choice for mission-critical applications requiring high performance and long-term stability.
Key Features
- High-Performance e200z4 Dual-Core Architecture
- 32-Bit Power Architecture® Technology
- Operating Frequency up to 120MHz
- 1MB Embedded Flash Memory
- 128KB On-Chip SRAM
- Integrated FlexRay Communication Interface
- Multiple CAN, LIN, SPI, and UART Interfaces
- 32-Channel 12-Bit ADC
- DMA Controller
- PWM and Watchdog Timer Support
- Internal Oscillator
- Automotive AEC-Q100 Qualified
- Industrial and Automotive Temperature Range
- RoHS Compliant
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | NXP Semiconductors |
| Part Number | SPC5643LF2MLQ1 |
| Series | MPC56xx Qorivva |
| Core Processor | e200z4 |
| Core Size | 32-Bit Dual-Core |
| Maximum Frequency | 120MHz |
| Program Memory | 1MB Flash |
| RAM | 128KB SRAM |
| ADC | 32-Channel 12-Bit |
| Communication Interfaces | CAN, FlexRay, LIN, SPI, UART/USART |
| Supply Voltage | 3V ~ 5.5V |
| Operating Temperature | -40°C to +125°C |
| Package Type | LQFP-144 |
| Mounting Type | Surface Mount |
Applications
- Automotive Body Control Modules
- Chassis Control Systems
- Electric Power Steering
- Automotive Safety Systems
- Industrial Automation Equipment
- Motor Control Systems
- Embedded Control Platforms
- Data Acquisition Systems
- Communication Gateways
- Intelligent Transportation Systems
Benefits
The SPC5643LF2MLQ1 combines high-performance processing, extensive communication capabilities, and advanced safety features in a single automotive-grade microcontroller. Its dual-core architecture and integrated FlexRay/CAN connectivity make it particularly suitable for modern automotive and industrial control applications requiring reliable real-time performance.
