Product Overview

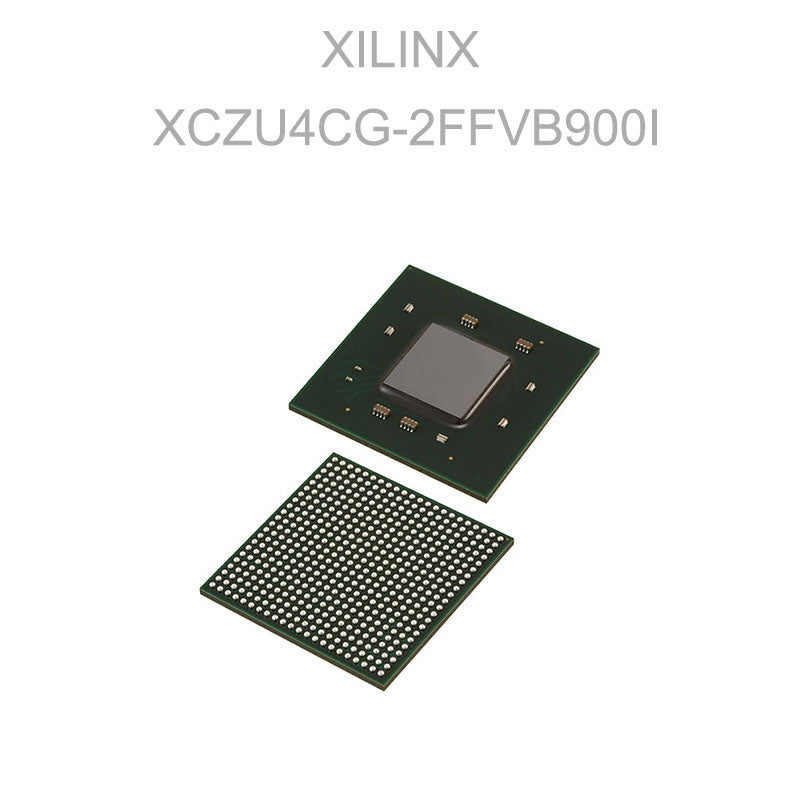

The XCZU4CG-2FBVB900I is a high-performance Zynq UltraScale+™ MPSoC CG device from AMD (formerly Xilinx). It combines a heterogeneous ARM processing system with programmable FPGA logic, providing application processing, real-time processing, hardware acceleration, high-speed connectivity, and programmable I/O in a single device.
The XCZU4CG integrates dual Arm Cortex-A53 application processors operating up to 1.3 GHz, dual Arm Cortex-R5F real-time processors operating up to 533 MHz, and approximately 192K system logic cells. The CG family also provides DDR memory interfaces, Gigabit Ethernet, USB 3.0, PCIe and SATA connectivity at the processing-system level.
The -2 speed grade and I temperature designation make this device suitable for demanding industrial embedded applications. The 900-FCBGA package provides 204 user I/O and has a package size of approximately 31 mm × 31 mm.
Key Features
- AMD Zynq UltraScale+ MPSoC CG
- Formerly Xilinx Zynq UltraScale+ MPSoC
- Dual Arm Cortex-A53 MPCore application processors
- Dual Arm Cortex-R5F MPCore real-time processors
- Cortex-A53 frequency up to 1.3 GHz
- Cortex-R5F frequency up to 533 MHz
- Approximately 192K system logic cells
- 728 DSP slices
- 20.6 Mb total on-chip RAM
- DDR4 / LPDDR4 / DDR3 / DDR3L / LPDDR3 memory support
- Up to 252 maximum I/O for the XCZU4CG family
- 204 I/O in the 900-FCBGA package
- PCIe Gen3 support
- USB 3.0
- SATA 3.1
- Gigabit Ethernet
- CAN
- I²C
- SPI
- UART/USART
- MMC/SD/SDIO
- DMA controllers
- Watchdog timers
- Programmable FPGA fabric
- Industrial temperature grade
- -40°C to +100°C junction temperature
- 900-FCBGA / FBVB900 package
- Approximately 31 mm × 31 mm
AMD's current product information lists 192K system logic cells, 20.6 Mb total RAM and 728 DSP slices for the ZU4CG device.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | AMD / Xilinx |
| Part Number | XCZU4CG-2FBVB900I |
| Product Family | Zynq UltraScale+ MPSoC |
| Series | Zynq UltraScale+ MPSoC CG |
| Device | ZU4CG |
| Category | SoC FPGA / MPSoC |
| Architecture | ARM Processor + FPGA |
| Application Processor | Dual Arm Cortex-A53 MPCore |
| Real-Time Processor | Dual Arm Cortex-R5F MPCore |
| A53 Maximum Frequency | 1.3 GHz |
| R5F Maximum Frequency | 533 MHz |
| System Logic Cells | 192K |
| DSP Slices | 728 |
| Total On-Chip RAM | 20.6 Mb |
| User I/O | 204 |
| DDR Interface | DDR4 / LPDDR4 / DDR3 / DDR3L / LPDDR3 |
| PCIe | PCIe Gen3 |
| Ethernet | Gigabit Ethernet |
| USB | USB 3.0 |
| SATA | SATA 3.1 |
| CAN | Supported |
| I²C | Supported |
| SPI | Supported |
| UART / USART | Supported |
| MMC / SD / SDIO | Supported |
| DMA | Supported |
| Watchdog | Supported |
| Speed Grade | -2 |
| Temperature Grade | Industrial |
| Operating Temperature | -40°C to +100°C TJ |
| Package | FBVB900 |
| Package Type | FCBGA |
| Pin Count | 900 |
| Package Size | 31 mm × 31 mm |
| Mounting Type | Surface Mount |
| Packaging | Tray |
| Lifecycle Status | Active |
The current AMD documentation confirms that XCZU4CG supports the FBVB900 package, and AMD's current Vivado documentation continues to list XCZU4CG as a supported Zynq UltraScale+ MPSoC device.
Processor Architecture
The XCZU4CG combines two different ARM processor subsystems.
Dual Arm Cortex-A53
The Cortex-A53 application-processing system is designed for high-level software and operating-system workloads.
Typical uses include:
- Embedded Linux
- Networking
- Data processing
- User interfaces
- Application software
- Computer vision
- High-level system management
The Cortex-A53 processors can operate at up to 1.3 GHz.
Dual Arm Cortex-R5F
The integrated Cortex-R5F processors are designed for deterministic real-time control.
They are suitable for:
- Motor control
- Industrial automation
- Real-time control
- Safety-oriented functions
- Low-latency processing
- Peripheral management
The Cortex-R5F subsystem can operate at up to 533 MHz.
This heterogeneous architecture allows high-level Linux/application processing and real-time control workloads to operate on different processor subsystems.
FPGA Resources
One of the major advantages of the XCZU4CG is the integration of programmable FPGA logic with the ARM processing system.
The ZU4CG provides:
- 192K system logic cells
- 728 DSP slices
- 20.6 Mb total RAM
- Programmable interconnect
- High-speed transceivers
- Custom hardware acceleration
The programmable logic can be used to implement:
- Digital signal processing
- Image processing
- Hardware accelerators
- Custom communication protocols
- Motor-control algorithms
- Data acquisition pipelines
- High-speed interfaces
- Machine-vision processing
AMD's current documentation also lists the XCZU4CG FBVB900 configuration in production IP support.
Memory & Storage Interfaces
The XCZU4CG processing system supports several external memory technologies, including:
- DDR4
- LPDDR4
- DDR3
- DDR3L
- LPDDR3
The device also supports MMC/SD/SDIO interfaces for external storage and embedded-system applications.
The integrated FPGA memory resources provide additional storage for hardware acceleration and real-time data processing.
Communication & Connectivity
The XCZU4CG provides extensive connectivity options, including:
- Gigabit Ethernet
- PCIe
- USB 3.0
- SATA 3.1
- CAN
- I²C
- SPI
- UART/USART
- MMC/SD/SDIO
- EBI/EMI
These interfaces make the device suitable for industrial networking, embedded computing, robotics and high-speed data-processing applications.
Applications
The XCZU4CG-2FBVB900I is suitable for a wide range of applications, including:
- Industrial Automation
- Industrial Networking
- Robotics
- Machine Vision
- Embedded Vision
- Image Processing
- Video Processing
- Digital Signal Processing
- Motor Control
- Real-Time Control Systems
- Medical Electronics
- Test & Measurement Equipment
- Communication Equipment
- Data Acquisition
- Edge Computing
- High-Performance Embedded Computing
- FPGA Hardware Acceleration
- Smart Factory Equipment
- Industrial Cameras
Benefits
The XCZU4CG combines application processing, real-time processing and programmable FPGA acceleration in a single SoC.
The Cortex-A53 subsystem can run Linux and other high-level software, while the Cortex-R5F subsystem handles deterministic real-time tasks. Meanwhile, the FPGA fabric can accelerate computationally intensive algorithms using dedicated hardware.
This architecture can reduce the need for separate:
- Application processors
- Real-time MCUs
- FPGAs
- Communication controllers
- DSP processors
The XCZU4CG also offers extensive high-speed connectivity and memory support, making it particularly useful for complex industrial and embedded systems.
Packaging & Ordering Information
| Parameter | Details |
|---|---|
| Manufacturer | AMD / Xilinx |
| Part Number | XCZU4CG-2FBVB900I |
| Device Family | ZU4CG |
| Product Family | Zynq UltraScale+ MPSoC CG |
| Speed Grade | -2 |
| Temperature Grade | Industrial |
| Package | FBVB900 |
| Package Type | FCBGA |
| Number of Pins | 900 |
| Number of I/O | 204 |
| Package Size | 31 mm × 31 mm |
| Mounting Type | Surface Mount |
| Packaging | Tray |
| Operating Temperature | -40°C to +100°C TJ |
| Lifecycle | Active |
AMD's official package documentation specifically identifies FBVB900 as the package for XCZU4CG, and the package documentation provides the corresponding I/O-bank and pin information.
Datasheet
For complete electrical characteristics, processor specifications, FPGA resources, pin assignments, power requirements, memory interfaces, timing specifications and absolute maximum ratings, refer to AMD's official documentation.
Datasheet: Zynq UltraScale+ Device Packaging and Pinouts
Frequently Asked Questions
What is XCZU4CG-2FBVB900I?
It is an AMD Zynq UltraScale+ MPSoC CG device combining ARM processors with programmable FPGA logic.
What processor does XCZU4CG use?
It integrates dual Arm Cortex-A53 application processors and dual Arm Cortex-R5F real-time processors.
How fast is XCZU4CG-2FBVB900I?
The Cortex-A53 application processors operate up to 1.3 GHz, while the Cortex-R5F real-time processors operate up to 533 MHz.
How many logic cells does XCZU4CG have?
The ZU4CG provides approximately 192K system logic cells.
How many DSP slices does XCZU4CG have?
The ZU4CG provides 728 DSP slices.
How much on-chip RAM does XCZU4CG have?
AMD lists 20.6 Mb of total RAM for the ZU4CG device.
What package is used for XCZU4CG?
The 900-pin version uses the FBVB900 FCBGA package, approximately 31 mm × 31 mm. AMD's official package documentation confirms FBVB900 for XCZU4CG.
What is the operating temperature?
The industrial version is specified for -40°C to +100°C junction temperature.
Is XCZU4CG-2FBVB900I still active?
The XCZU4CG family remains supported in AMD's current development environment, and current distributor data lists the XCZU4CG-2FBVB900I as Active.
What applications is XCZU4CG suitable for?
It is suitable for industrial automation, robotics, machine vision, communications, embedded vision, data acquisition, real-time control, industrial networking and FPGA-accelerated computing.
Is XCZU4CG an FPGA or processor?
It is both. It is a heterogeneous MPSoC combining ARM processors with programmable FPGA logic.
